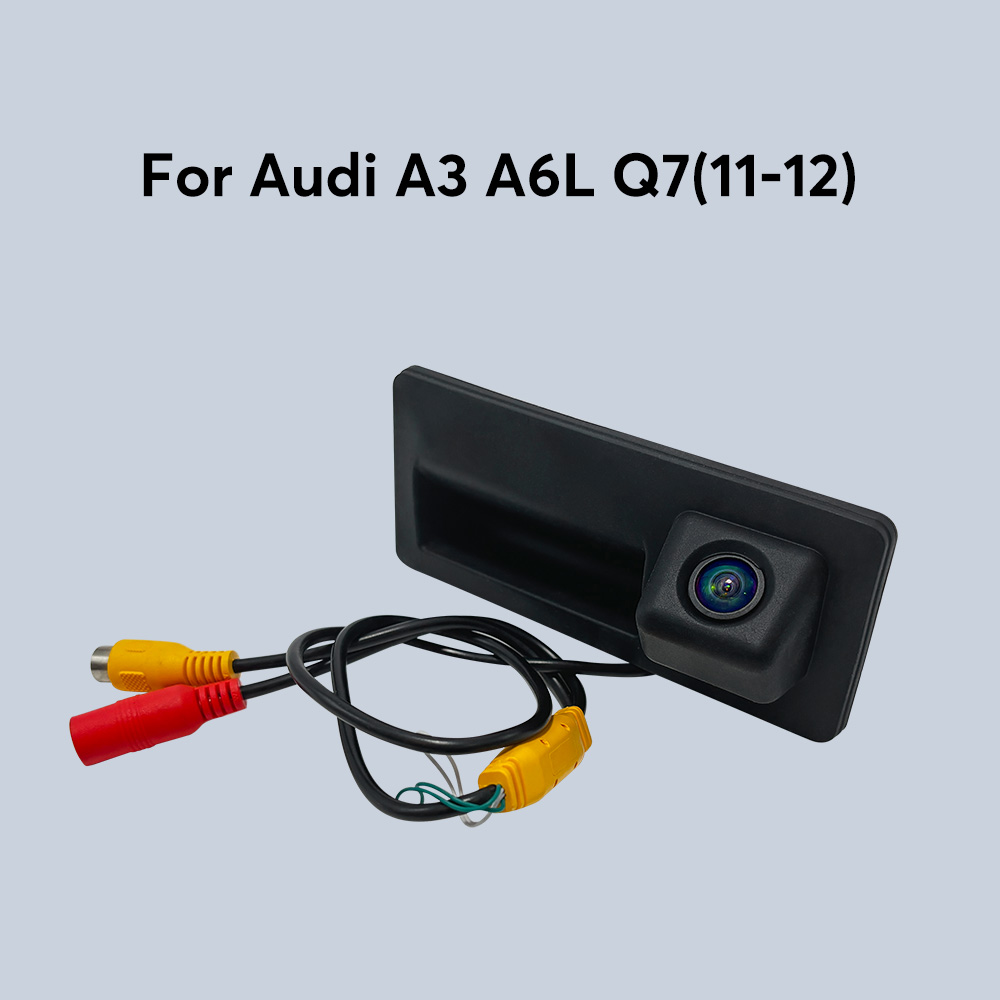

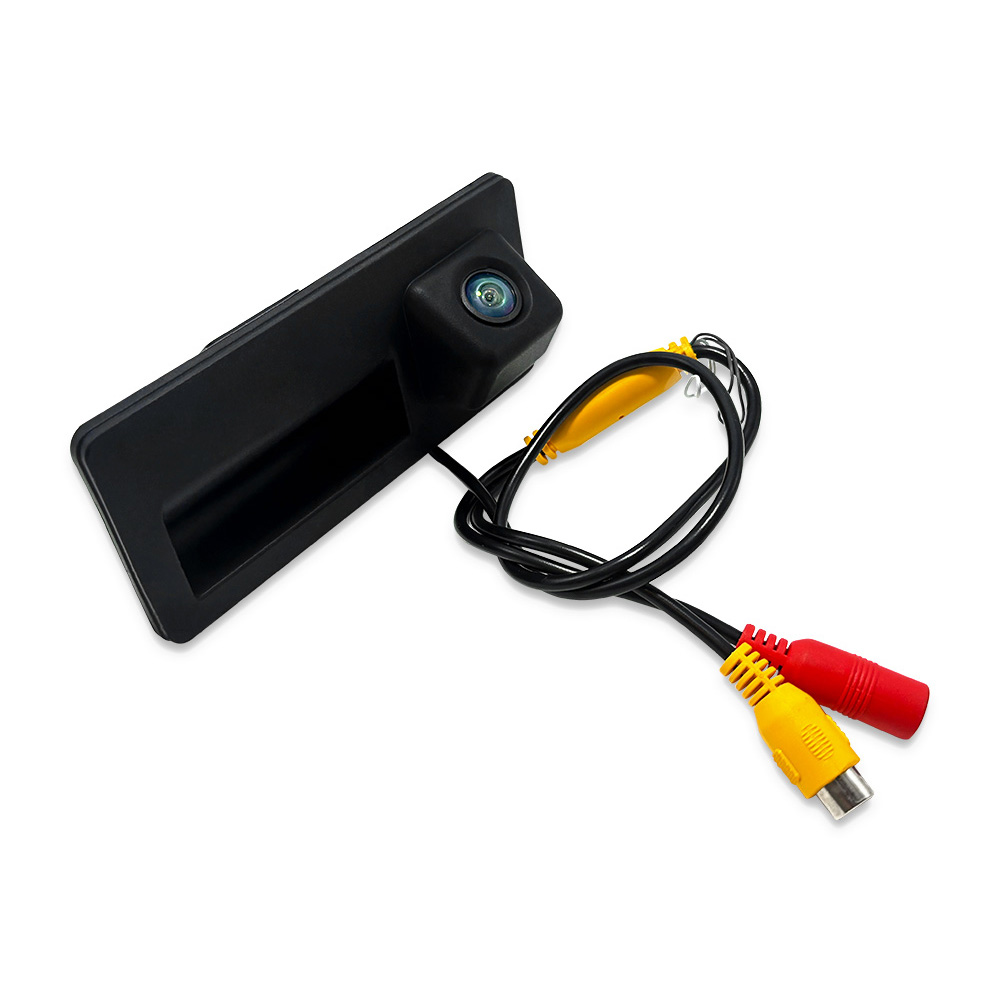

Applicable to 2012-2015 Audi A4L/S5/S3, 2012-2017 Audi A6L, 2012-2016 AudiQ3/Q5, 2015-2016 Audi A3, 2016-2017 Audi Q7, AHD format camera compatible with CVBS

Compatible with:

2012/13/14/15 AUDI A4L/S5/S3

2009/10 Passat driver

2012/15 Tiguan/RS6

2012/14/15/16 Sagitar/Lavida/Passat

2012/13/14/15/16/17 AUDI A6L

2012/13/14/15/16 AUDI Q3/Q5

2014/15/16 Volkswagen Touareg

2015/16 AUDI A3

2016/17 AUDI Q7

Overview:

* High definition and waterproof

* Distance reference line

* Prevent your car from bumping into others



NOTES:

* It’s HIGHLY RECOMMENDED to check the sizes of the camera first and make a com

   parison with your car trunk handle.

* By default, the camera will be produced as NTSC and with parking lines.

* Important: No LVDS connectors output to original screen.

Rearview camera parameters:

Solution: 1346+885

Sensor: Night vision CMOS

Format: CVBS N/AHD720P 25fps

Pixels: 100W

Interface: BMW head/AV

Angle: Horizontal 140°

Signal-to-noise ratio: ≥43dB

White balance: Automatic

Synchronization mode: Internal synchronization

Working temperature: -20℃-80℃

Waterproof level: IP68

Power adapter: 9V-15V±10%

Working current: 85mA±5mA



Item Includes:

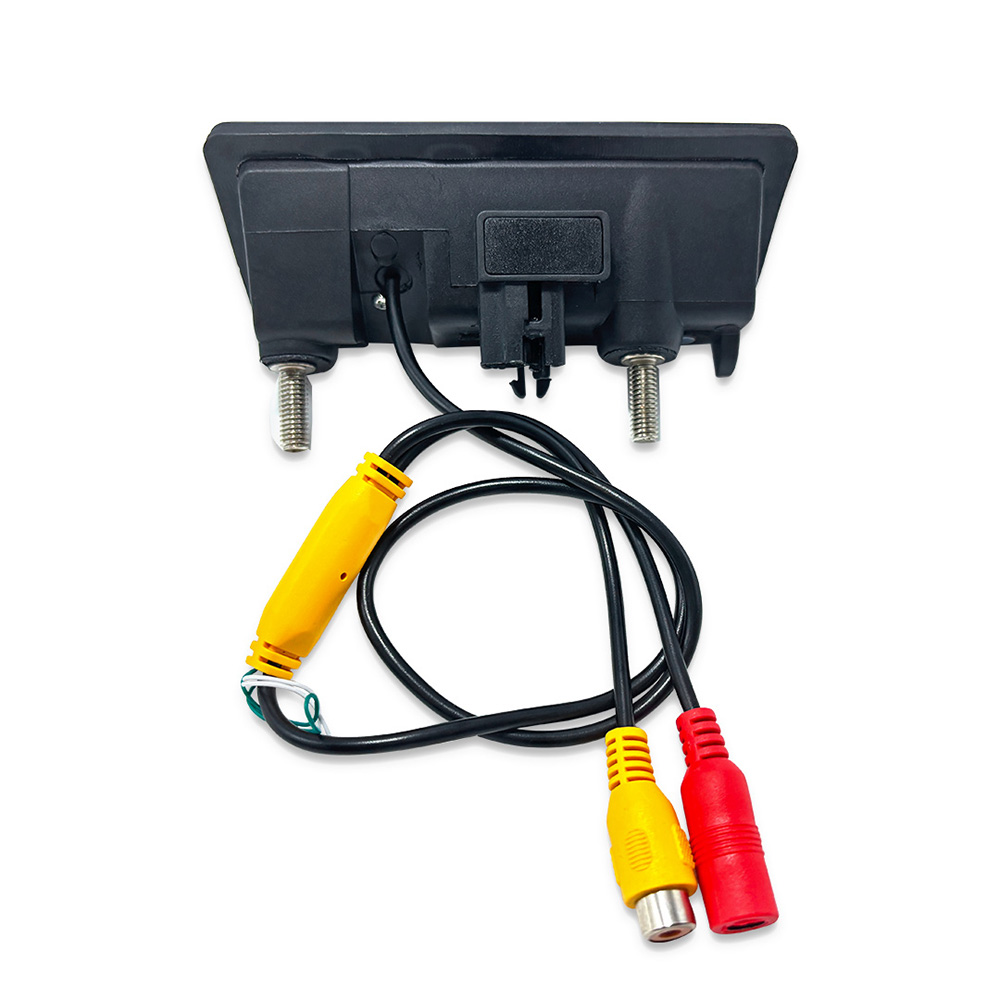

– 1 x handle Reversing Camera

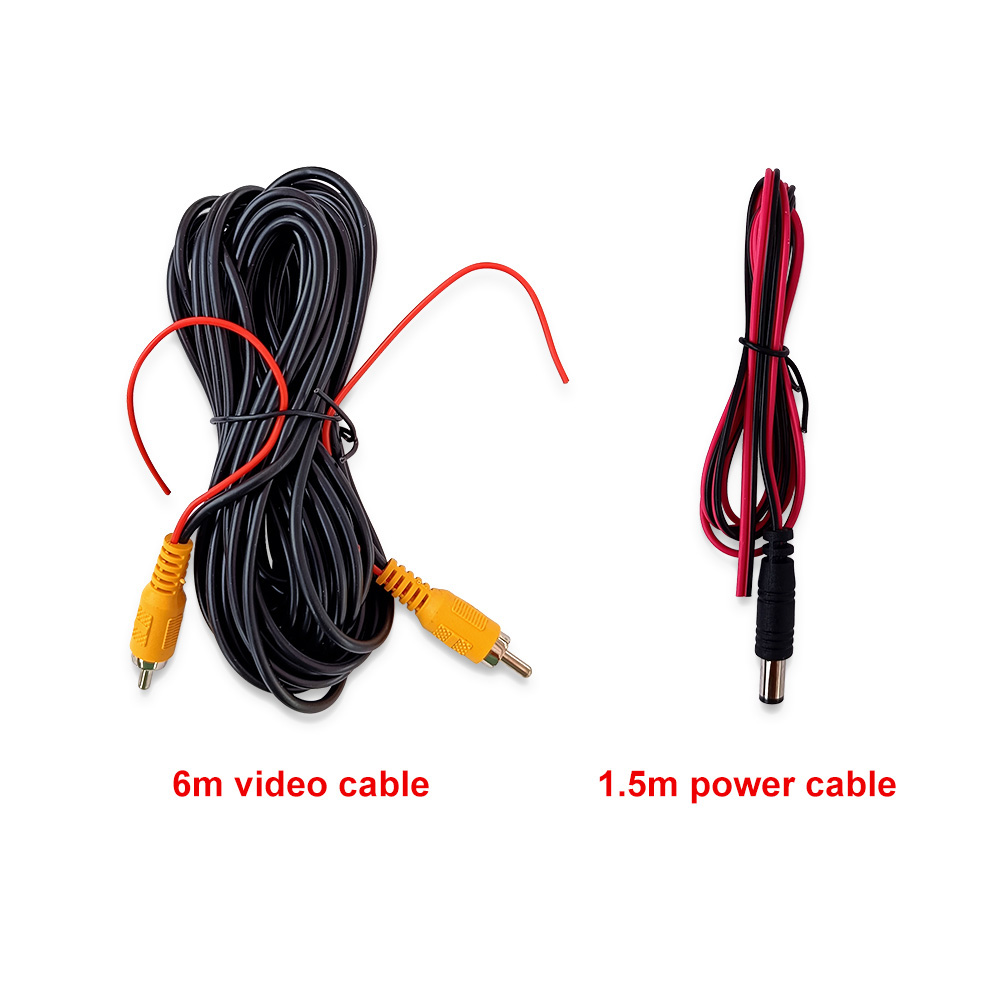

– 1 x Power cable

– 1 x Video cable

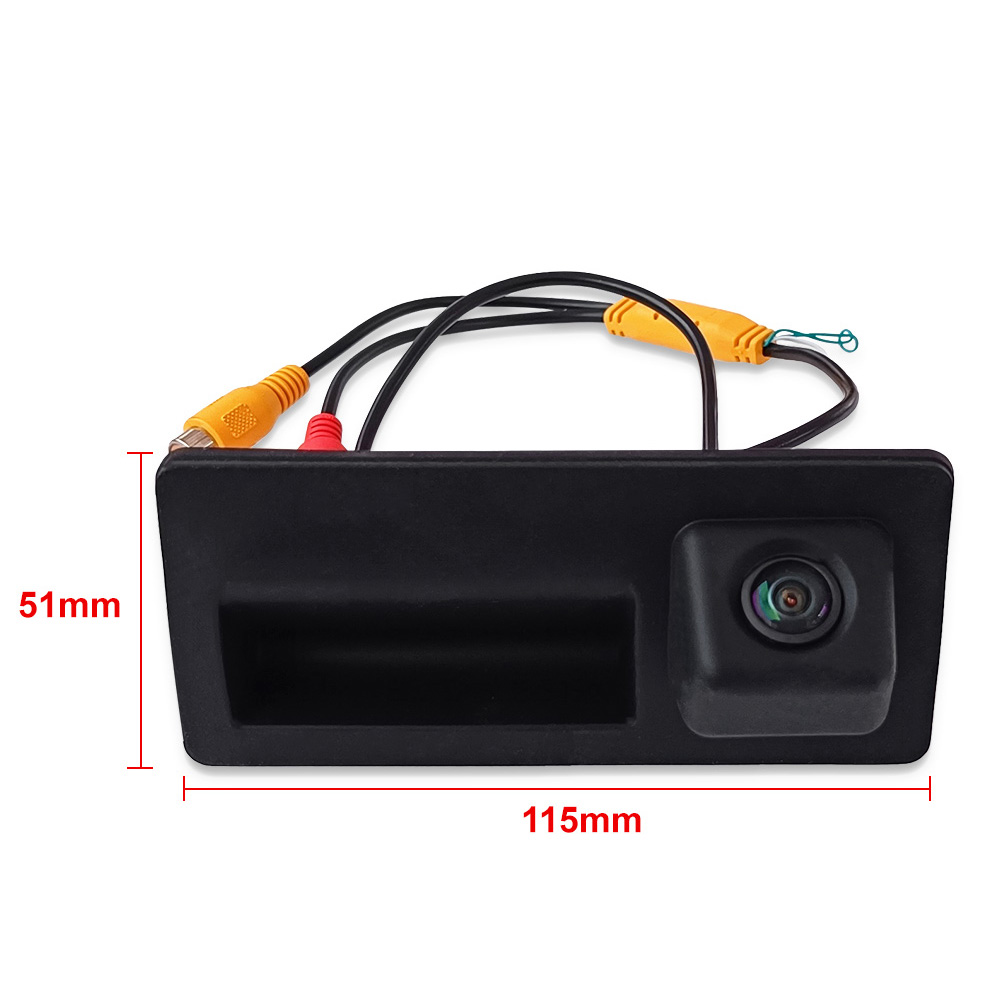

11.5cmx5.1cm 0.27kg



Weight	1 kg
