AHD format camera compatible with CVBS for 13/14/15 new Mercedes-Benz ML/13 Mercedes-Benz A180/A200/A260/15/16 Mercedes-Benz GLA/GLC/GLE

Compatible with:

Benz 2013/14/15 new ML

Benz 2013 A180/A200/A260

Benz 2015/16 GLA/GLC/GLE



Overview:

* High definition and waterproof

* Distance reference line

* Prevent your car from bumping into others



NOTES:

* It’s HIGHLY RECOMMENDED to check the sizes of the camera first and make a com

   parison with your car trunk handle.

* By default, the camera will be produced as NTSC and with parking lines.

* Important: No LVDS connectors output to original screen.



Rearview camera parameters:

Solution: 1346+885

Sensor: Night vision CMOS

Format: CVBS N/AHD720P 25fps

Pixels: 100W

Interface: BMW head/AV

Angle: Horizontal 140°

Signal-to-noise ratio: ≥43dB

White balance: Automatic

Synchronization mode: Internal synchronization

Working temperature: -20℃-80℃

Waterproof level: IP68

Power adapter: 9V-15V±10%

Working current: 85mA±5mA



Item Includes:

– 1 x handle Reversing Camera

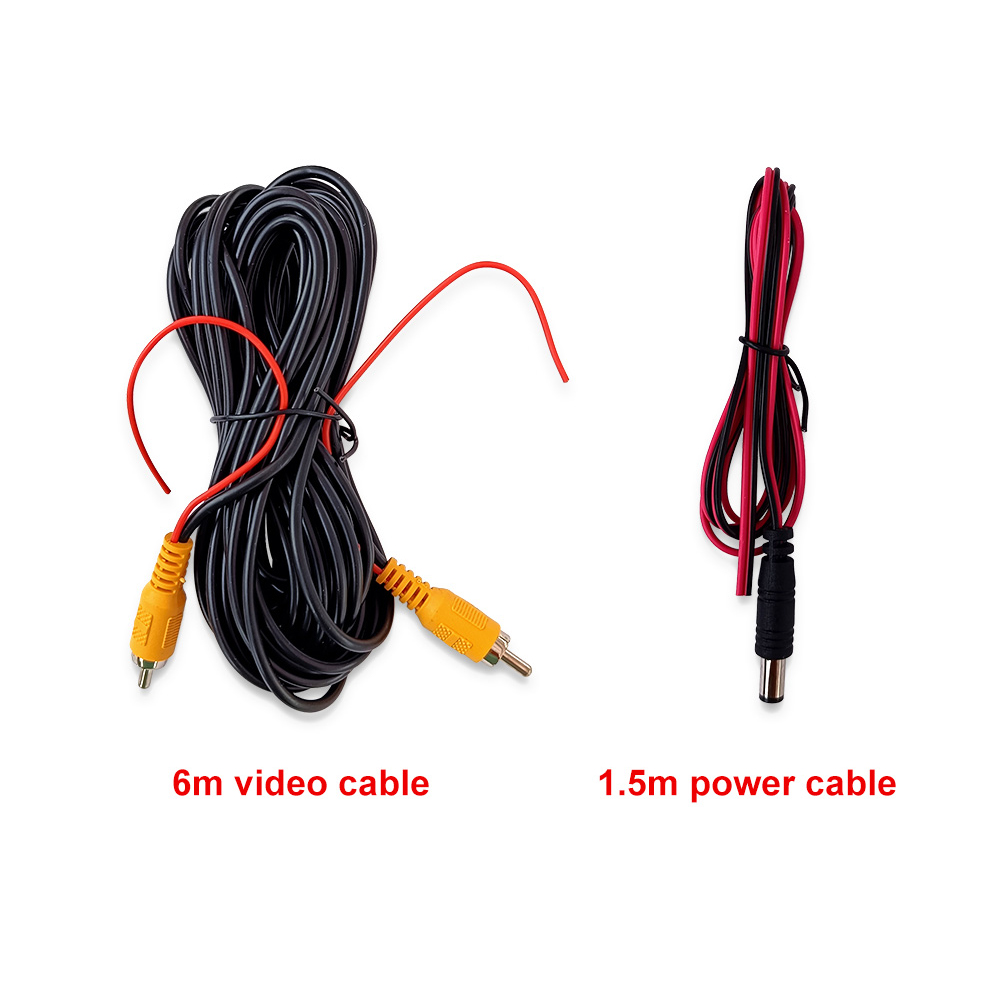

– 1 x Power cable

– 1 x Video cable

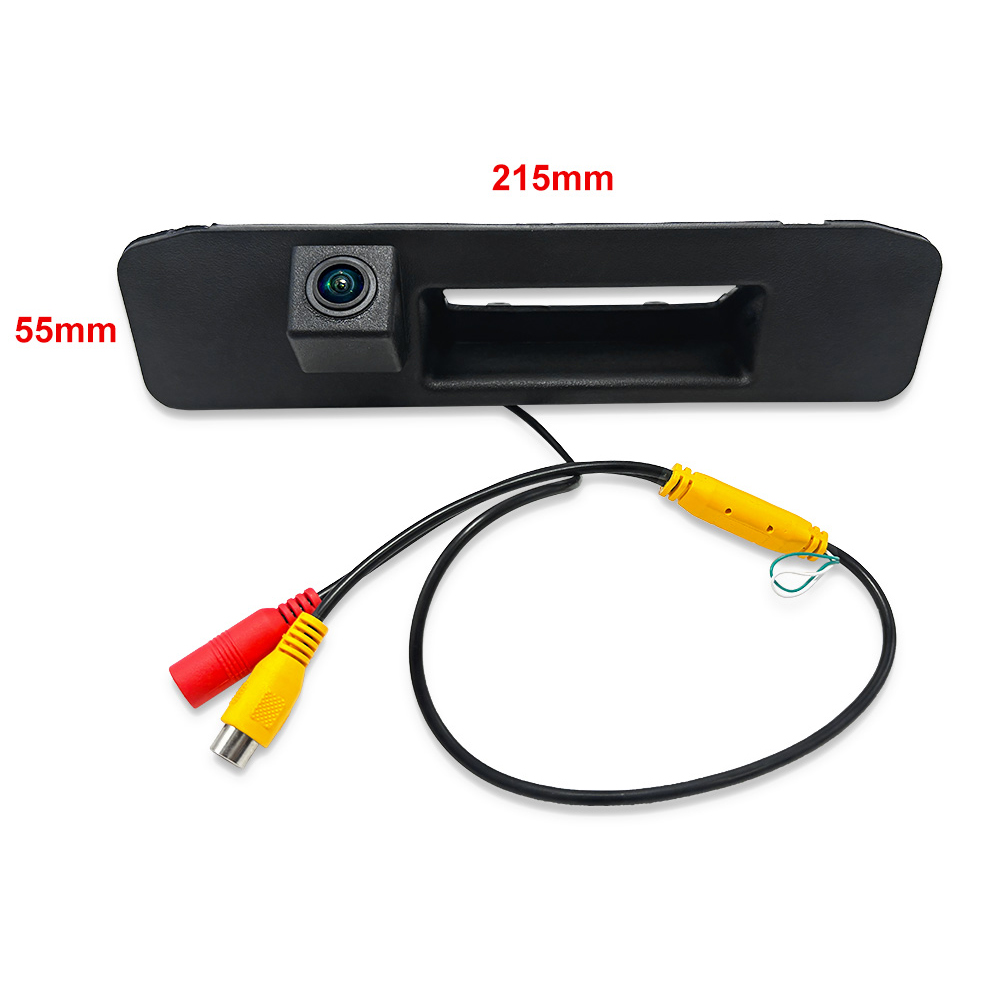

21.5cmx5.5cm 0.25kg



Weight	1 kg
