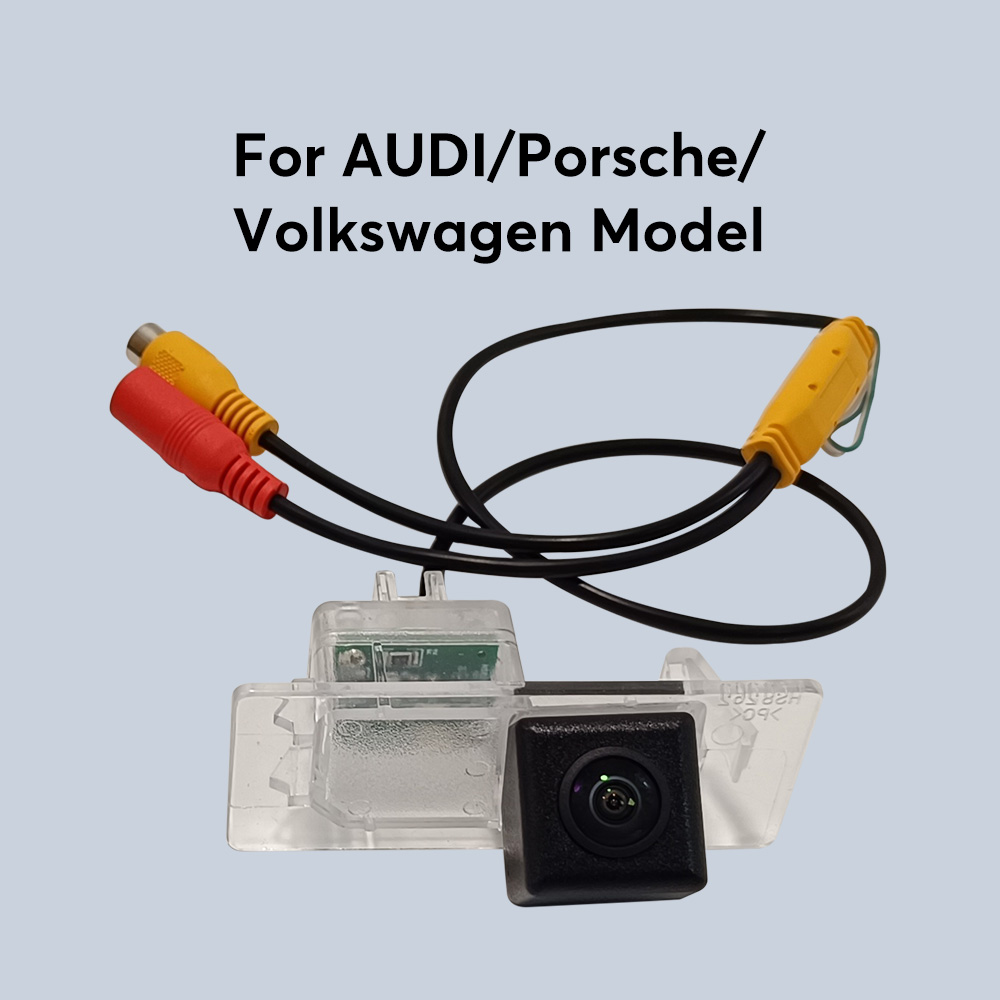

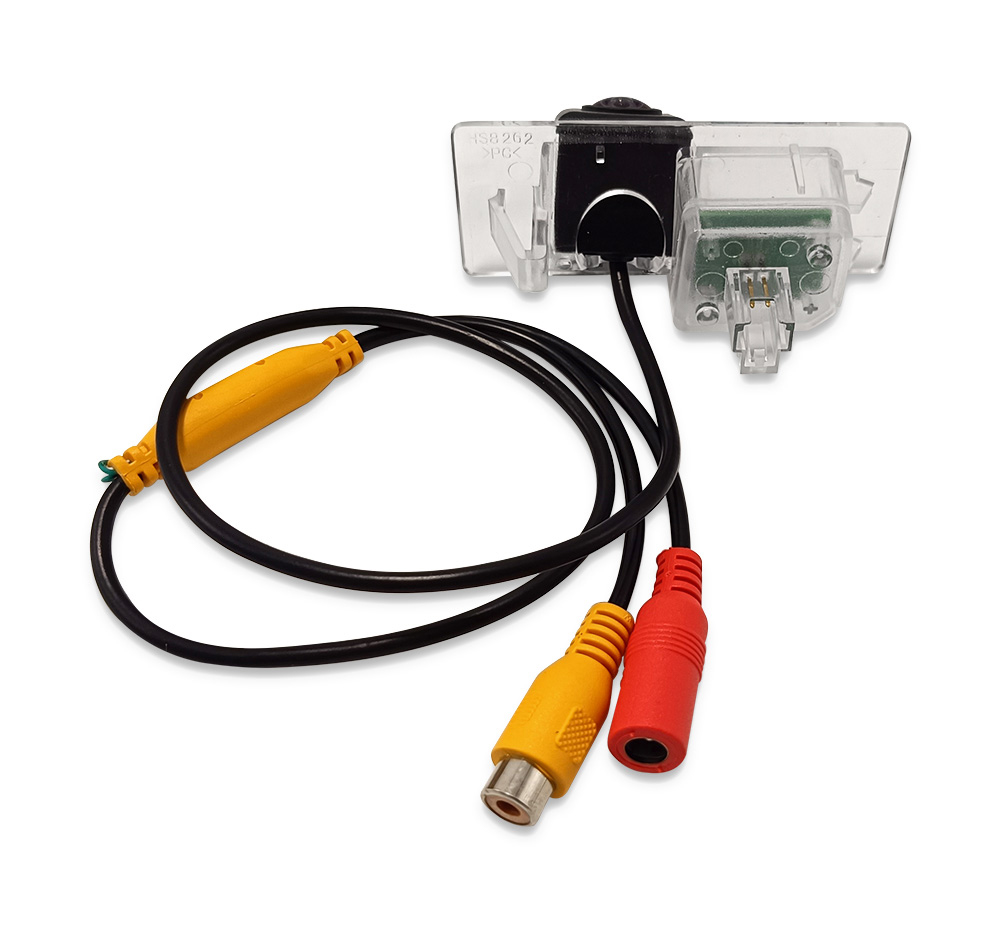

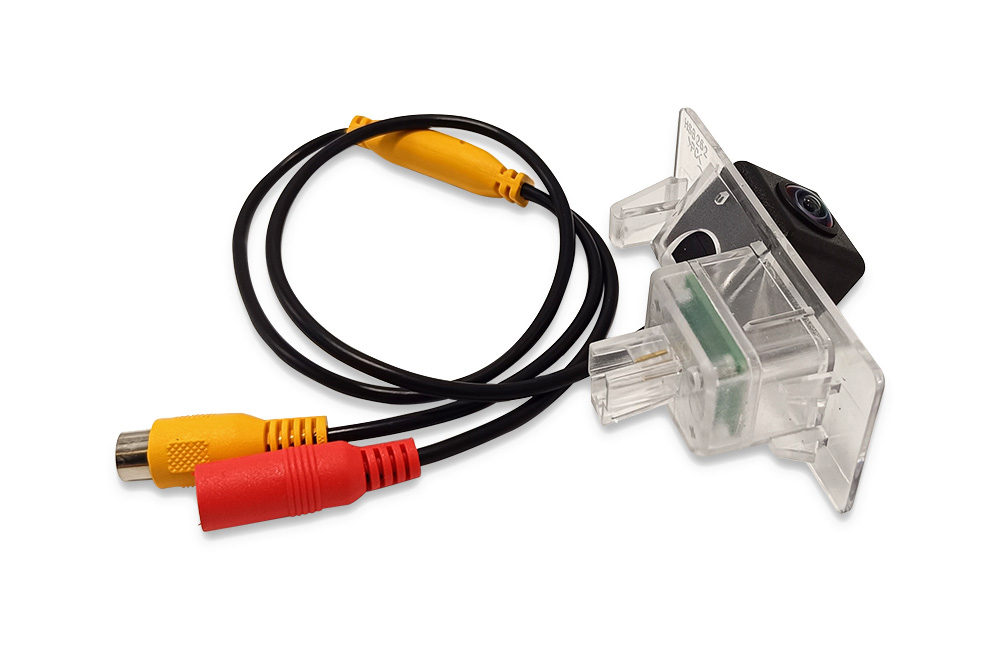

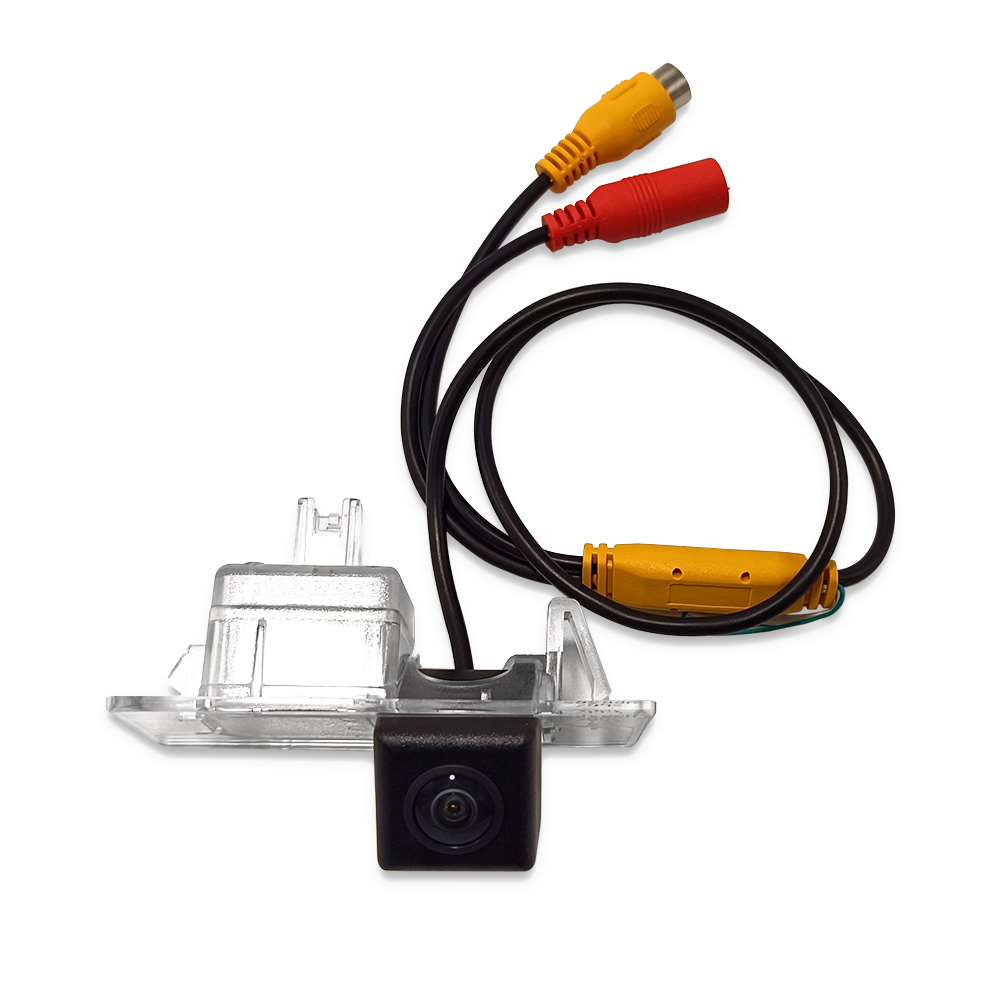

AHD 1080P CCD Trunk Handle Rear View Camera For AUDl/Porsche/ Volkswagen Model

Compatible with:

2013/14/15/16 AUDI A4L

2012/13/15/16 A6L

2013/16 A3 Sedan

2012/13/16 A1

2013/14/16 S3/Q3/Q5(Original car light with socket）

2013/14/15 Superb Derivative

2015/16 Touareg

2015/16 Porsche Cayenne

2015/16 Sharon

2016 PHIDEON

2016 Volkswagen Alltrack

2016 sportvan (including light panel）



Overview:

* High definition and waterproof

* Distance reference line

* Prevent your car from bumping into others



NOTES:

* It\’s HIGHLY RECOMMENDED to check the sizes of the camera first and make a com

   parison with your car trunk handle.

* By default, the camera will be produced as NTSC and with parking lines.

* Important: No LVDS connectors output to original screen.



Rearview camera parameters:

Solution: 1346+885

Sensor: Night vision CMOS

Format: CVBS N/AHD720P 25fps

Pixels: 100W

Interface: BMW head/AV

Angle: Horizontal 140°

Signal-to-noise ratio: ≥43dB

White balance: Automatic

Synchronization mode: Internal synchronization

Working temperature: -20℃-80℃

Waterproof level: IP68

Power adapter: 9V-15V±10%

Working current: 85mA±5mA



Product List:

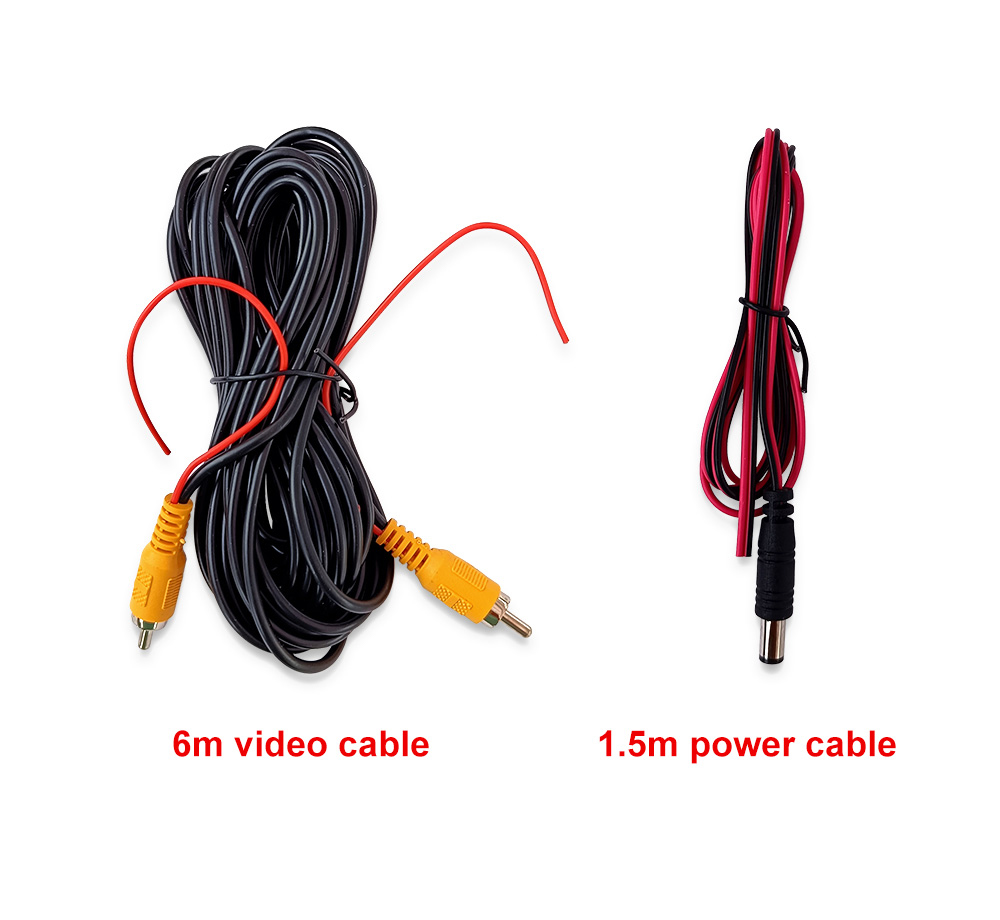

– 1 x handle Reversing Camera

– 1 x Power cable

– 1 x Video cable

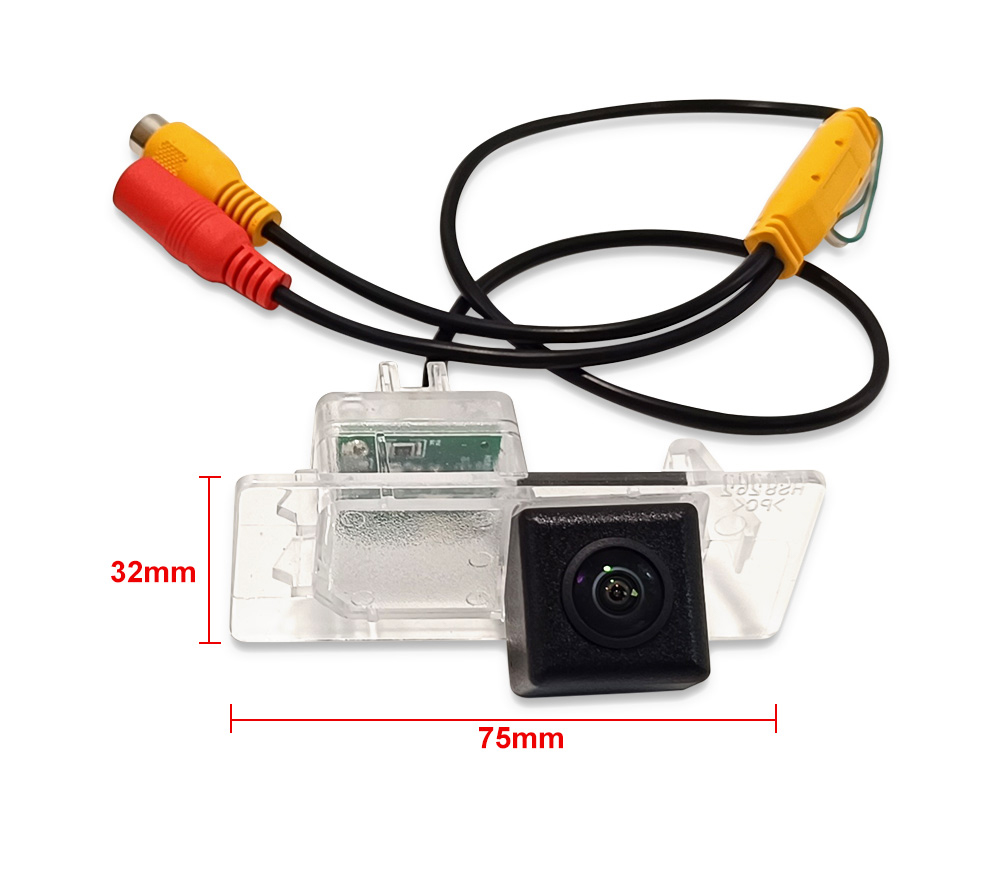

7.5×3.2cm    0.16kg

Weight	1 kg
